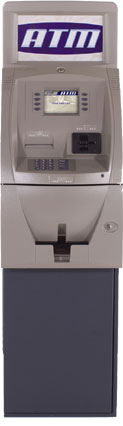

Triton RL1600: Entry-level just got a lot more high-end

Introducing the all new RL1600 —Triton’s most affordable, feature-rich off-premise ATM. With a color display, TCP/IP communication capabilities, and a robust Windows operating system for faster transactions — the RL1600 is packed with many extras normally reserved for machines twice its price. The RL1600 is a remarkably high value solution for retailers looking to boost cash sales, as well as for financial institutions interested in expanding customer touch points with offsite ATM placement.

In the RL1600, you will find an entry-level, reliable ATM whose affordable price makes it easy to place at multiple locations. Plus, the compact design means it won’t take up valuable floor space. And, with support for advertising and screen customizing capabilities, ATM owners can create their own marketing messages and coupons which drives traffic to your location and increases customer loyalty.

Designed and assembled with pride in the USA, the RL1600’s innovative configuration—including an embedded PC-based platform, Microsoft® Windows® CE 5.0 operating system with Triton’s X2 technology—makes it as powerful as it is affordable and reliable. It has a large storage capacity for journaling, and is expandable to meet future compliance and application needs.

Find out for yourself why Triton has been the trusted leader for ATM affordability and service for more than two decades.



Configuration Stand Alone
Screen Options 5.7" VGA Color Display
Printer Options 60 mm Thermal Printer
Cabinet / Safe Options UL 291 Business Hours Cabinet
Dispenser Options Talaris MiniMech (formerly De La Rue)
Topper / Signage Options Mid-Topper (Standard)
Lock Options Manual Lock (standard)
Electronic Lock (Field Installed Option
Card Reader Options Dip-Style Card Reader
Dip-Style EMV Smart Card Reader (Canada
Communications Options 56k Baud Dial Up USB Modem
Wireless Capable
Compliance Americans with Disabilities Act (ADA)
Audio Compliance for Visually Impaired
Triple DES Compliant
UK Accessibility Guidelines (DDA)
California Access Compliance, Title 24
Canadian Barrier Free Design (CBFD)
PCI Compliant Encrypting PIN Pad
Advertising Potential Decals & Signage
Display Graphics
Transaction Screens
Dimensions Length - 16” (406 mm)
Width - 17.12” (434 mm)
Height  - 49.5” (1257 mm)
Weight 140 lbs (63 kg)
Operating System 32 Bit Processor
Microsoft® Windows® CE 5.0
512 MB Flash Memory Expandable
64 MB RAM Expandable
10 MB Journal Storage (125,000 Records)
Software Triton Standard
Operating Specs Temperature (Internally) - 50°-104° F    (10°-40° C)
Relative Humidity - 20-80%
Power Consumption - 115 Watts
