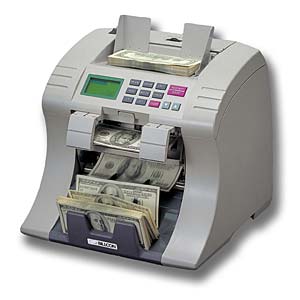

Currency Discriminating Counter D-551 Series

The Billcon D-551 Currency Discrimination Counter allows operators to be more efficient and cost-effective, they spend less time counting and more time helping customers. Here's how....

No presorting is necessary. Simply choose your settings, place the bills in the hopper, and go. The D-551 counts the bills you want to count, and automatically diverts the others to the large 100-note-capacity pocket. Everything is performed quickly and accurately with no need to stop midway through the process.

The all-new Billcon D-551 features advanced high-speed denomination recognition technology, six modes of counting bills preset batching and a blazing 1,200-notes-per-minute speed. Billcon's unique full-line sensor accurately distinguishes between the six denominations of U.S.bills .

Features

  • Offers magnetic detection.
    Magnetic sensors provide quick and effective suspicious note detection as counterfeit.

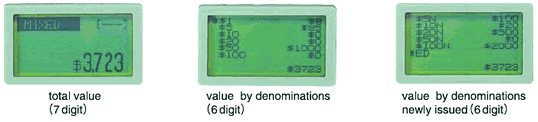

  • Shows a full-graphic display.
    The large, easy-to-read LCD screen shows total bill count and value, total cumulative bill count and value, bill count and value by denomination, cumulative bill count and value by denomination, as well as error codes and messages.
  • Offers instant error detection.
    When the Billcon D-551 encounters errors such as skew, half note, short note, over-batch, jams, etc., it automatically notifies the user with an alarm and LCD readout.
  • Provides automatic starting.
    The D-551 is programmed to start automatically when bills are placed in the hopper. Or, it can be set to start manually..
  • Interface.
    Two communication ports for RS-232C can be installed for connection to devices such as personal computer, serial printer and cash settlement system.

Choose from a variety of counting modes:

  • Mixed Mode < Mixed Counting >
    Identifies and counts mixed denomination bills, providing a summary of each denomination and total count.

  • Single Mode < Denomination Sorting Counting >
    Sorts a specific denomination. Other denominations are rejected to the pocket.

  • Separation Mode < Separate Denomination Counting >
    Counts a specific denomination. When a bill of a different denomination is detected, the machine temporarily stops. When bills are removed from the stacker, counting resumes.

  • Single and Direction Mode < Denomination and Direction Sorting Counting >
    Sorts in direction and denominations. Other direction and denomination are rejected to the pocket.

  • Free Mode <Piece Counting Mode>

Specifications

Currency
US dollar (six denominations excluding $2
Count speed
1,200 1,000, 600 notes-per-minute
Preset batch
100, 50, 25, 20, 10 (manually adjustable from 1-999)
Interface
2 Communication ports for RS-232C
Display
Liquid crystal dot matrix display (graphic type)
Hopper capacity
500 notes
Stacker capacity
200 notes
Pocket capacity
100 notes
Suspicious note detection
Magnetic sensors
Dimensions (W X D X H)
13.0 X 13.4 X 12.0 inch (330 X 340 X 300 mm)
Weight
29.7 lbs (13.5kg)
Power consumption
90W
Power supply
AC 100 - 120V ± 10%
